TCG 60 Cummins Engine Data Sheet
| Genset sets type | TCG60 |
| Prime output(KVA) | 60 |
| Prime output(KW) | 48 |
| Standby output(KVA) | 66 |
| Standby output(KW) | 52.8 |

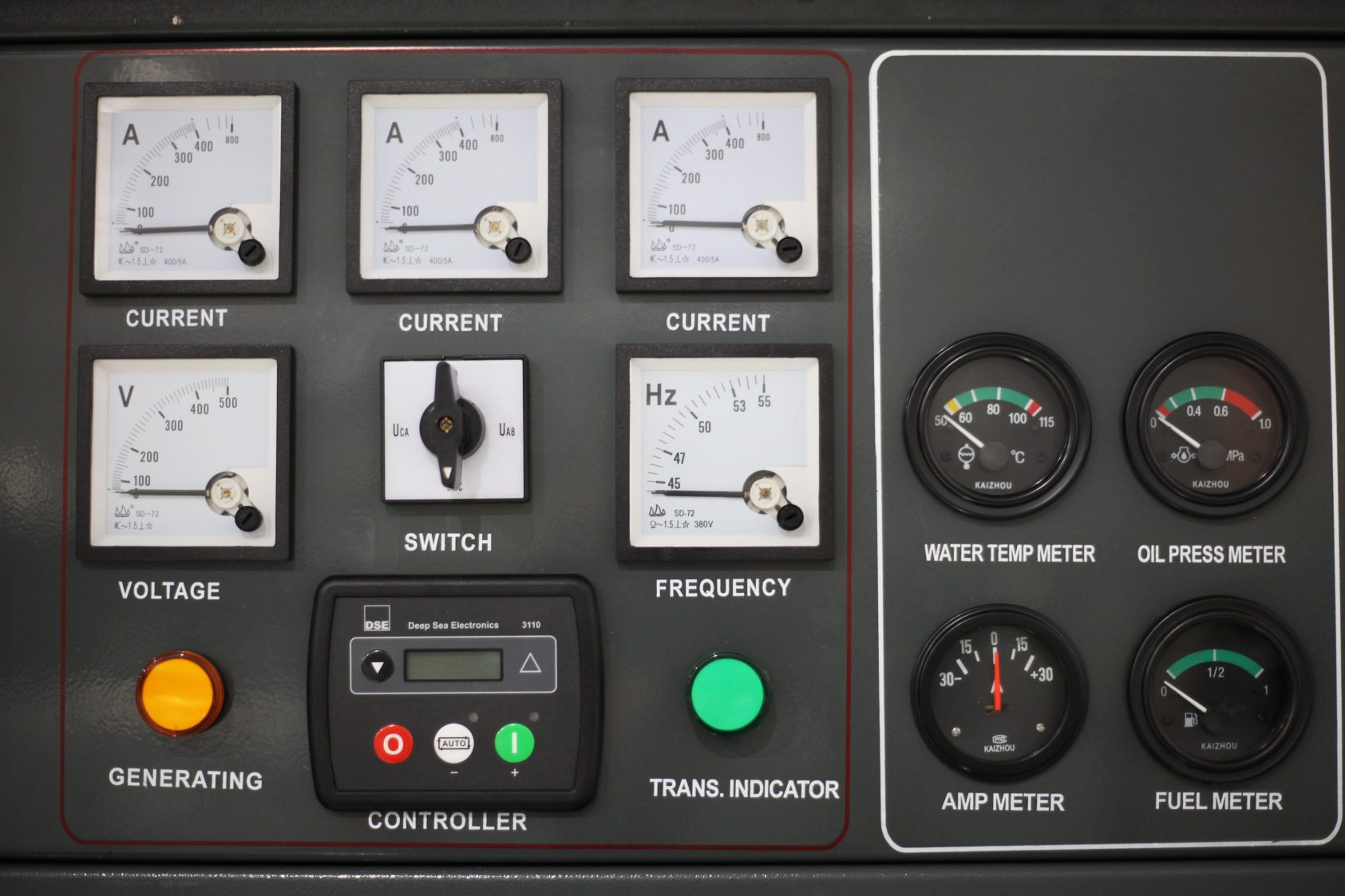

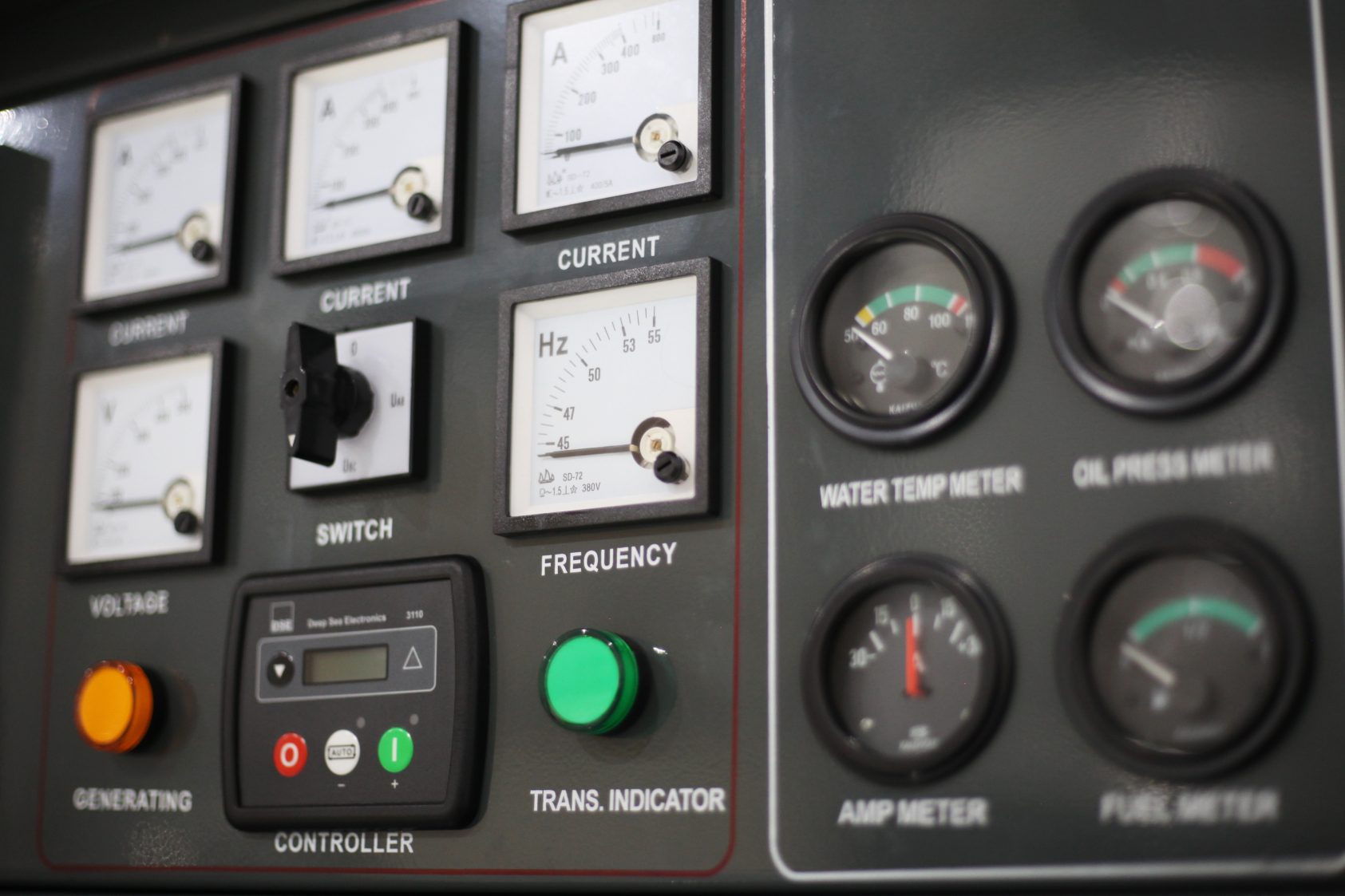

| Controller | DeepSea DSE3110 |
| Engine Brand | Cummins |
| Engine Model | 4BTA3.9-G2 |
| Number of cylinders | 4 |
| Cylinder arrangement | 4 in line |
| Bore / stroke(mm) | 102*120 |
| Displacement (L) | 3.9 |
| Rated Output(kW) | 50 |
| Standby Output(kW) | 55 |
| Compression ration | 17.3:1 |
| Fuel consumption at 100% reading (L/H) | 12 |
| Engine Cooling Fluid Volume(L) | 24 |
| Air In Take | Turbocharged and AfterCooled |
| Governing Method | Electronic |
| Generator Model | UCI224E |
| Manufacturer | Stamford |
| Output(KVA) | 60 |
| Voltage /Frequency/Factor | 380V, 3Phase,50HZ, cosφ0.8 |
| Stead Voltage Regulation(%) | ±1 |
| Insulating grade | H |
| Protection grade | IP23 |
| Silent type Size (mm) | 2300*1100*1390 |
| Silent type Weight (KGS) | 1060 |

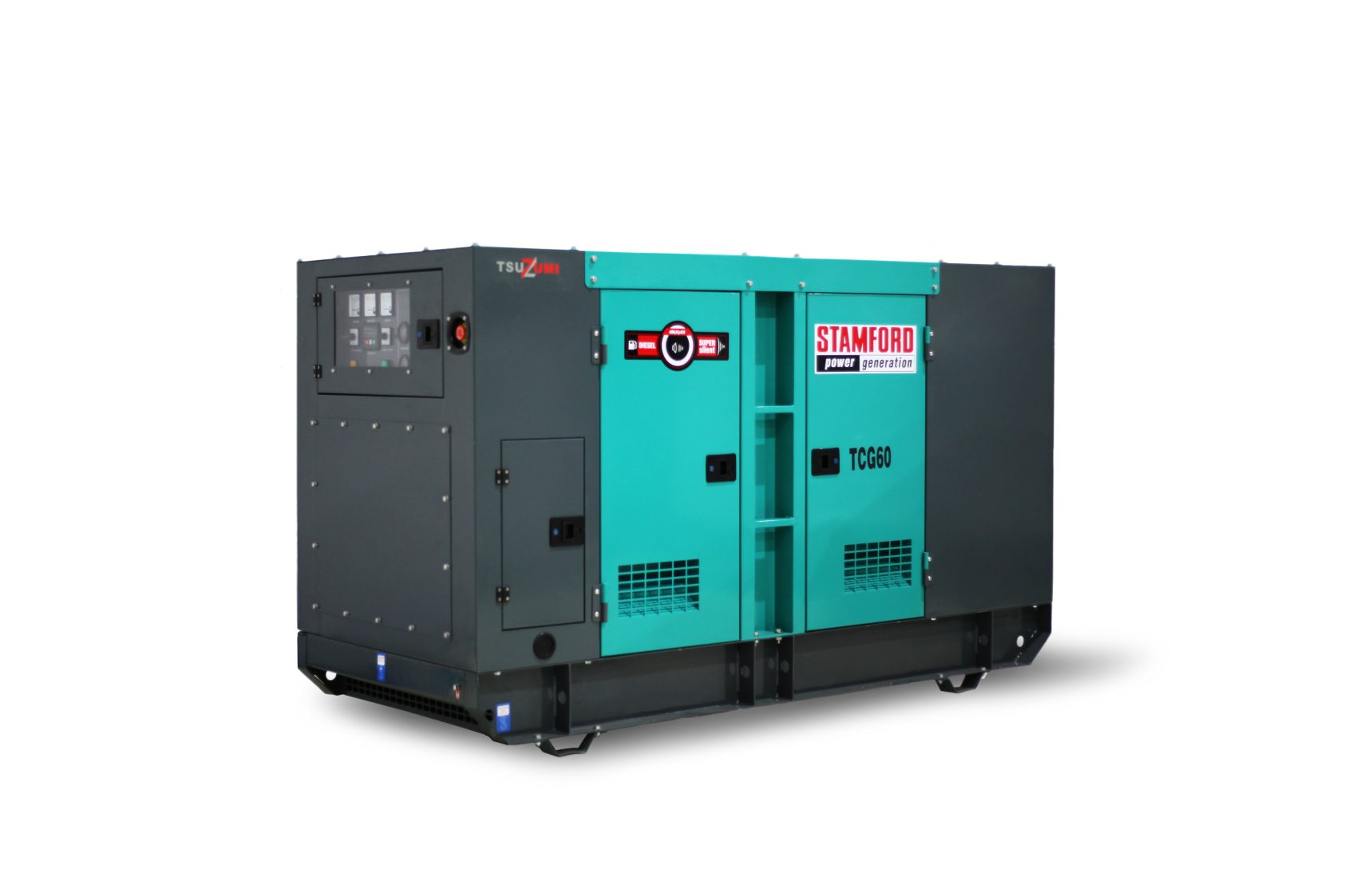

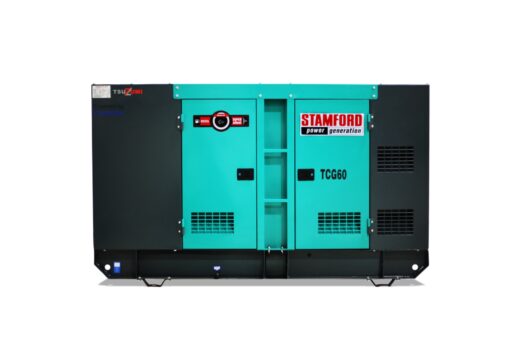

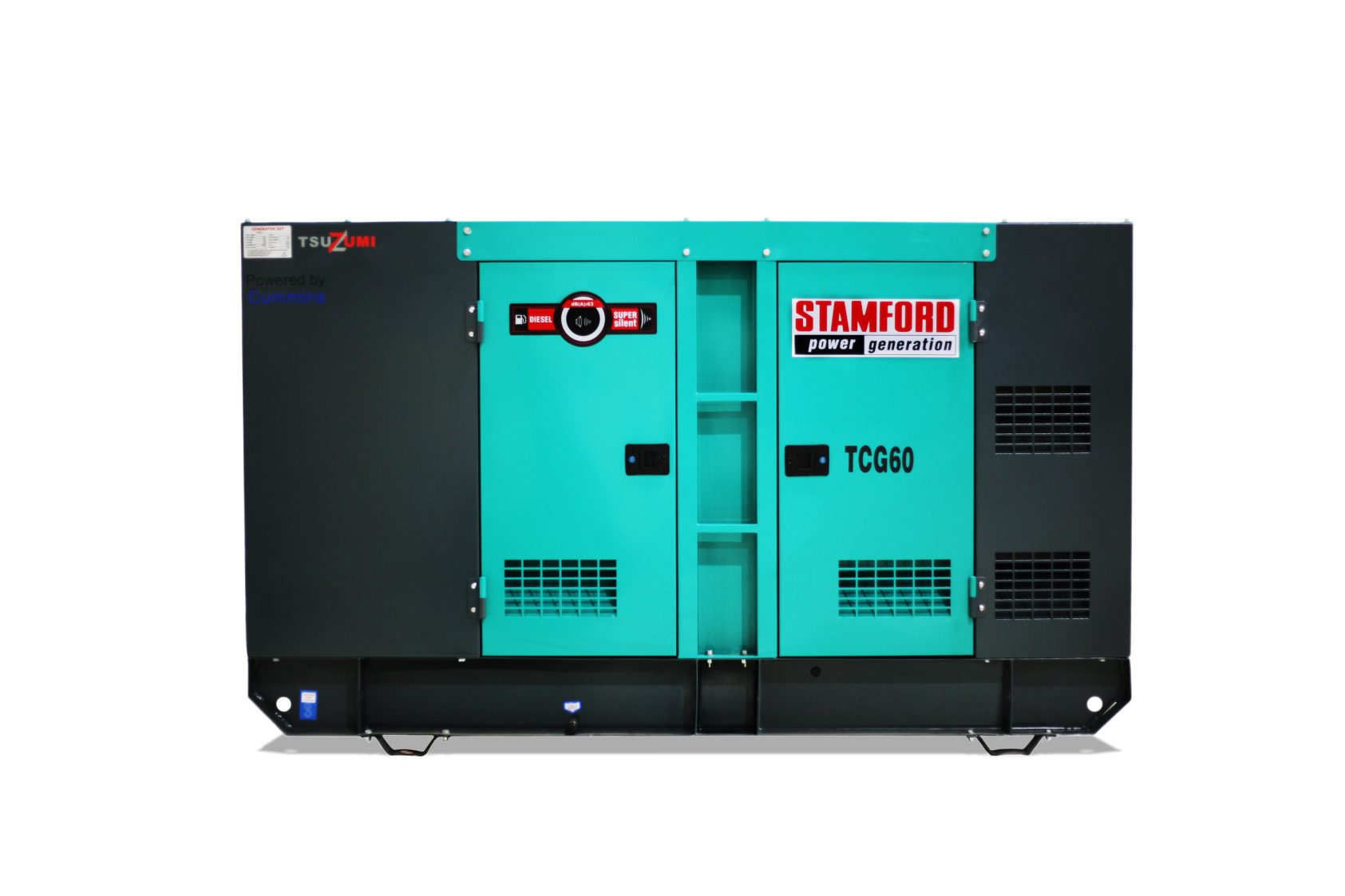

TCG 60 KvA is Realible Tsuzumi genset with Cummins Engine!
TCG 60 Genset gives you best performances of Japan Technology!
