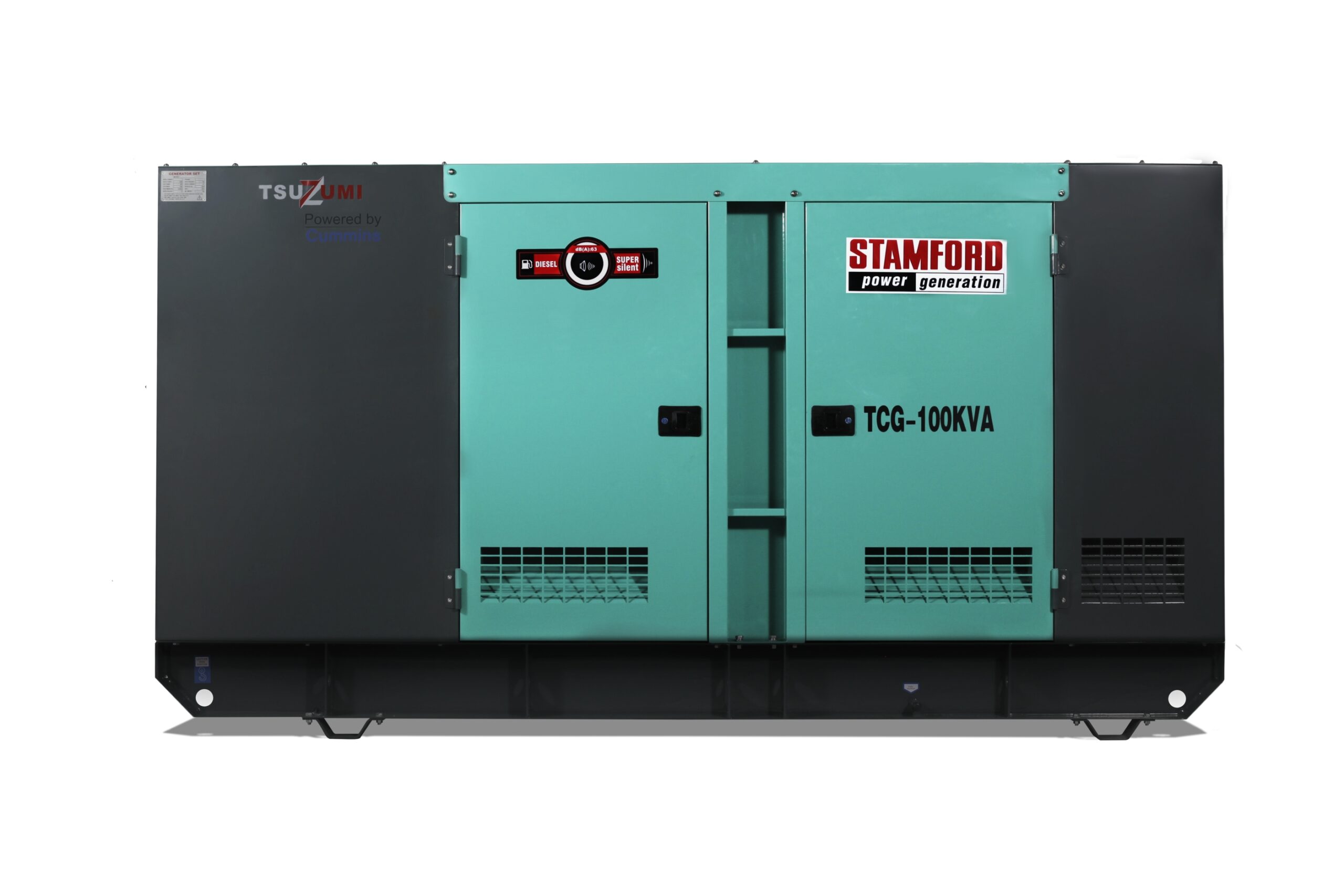

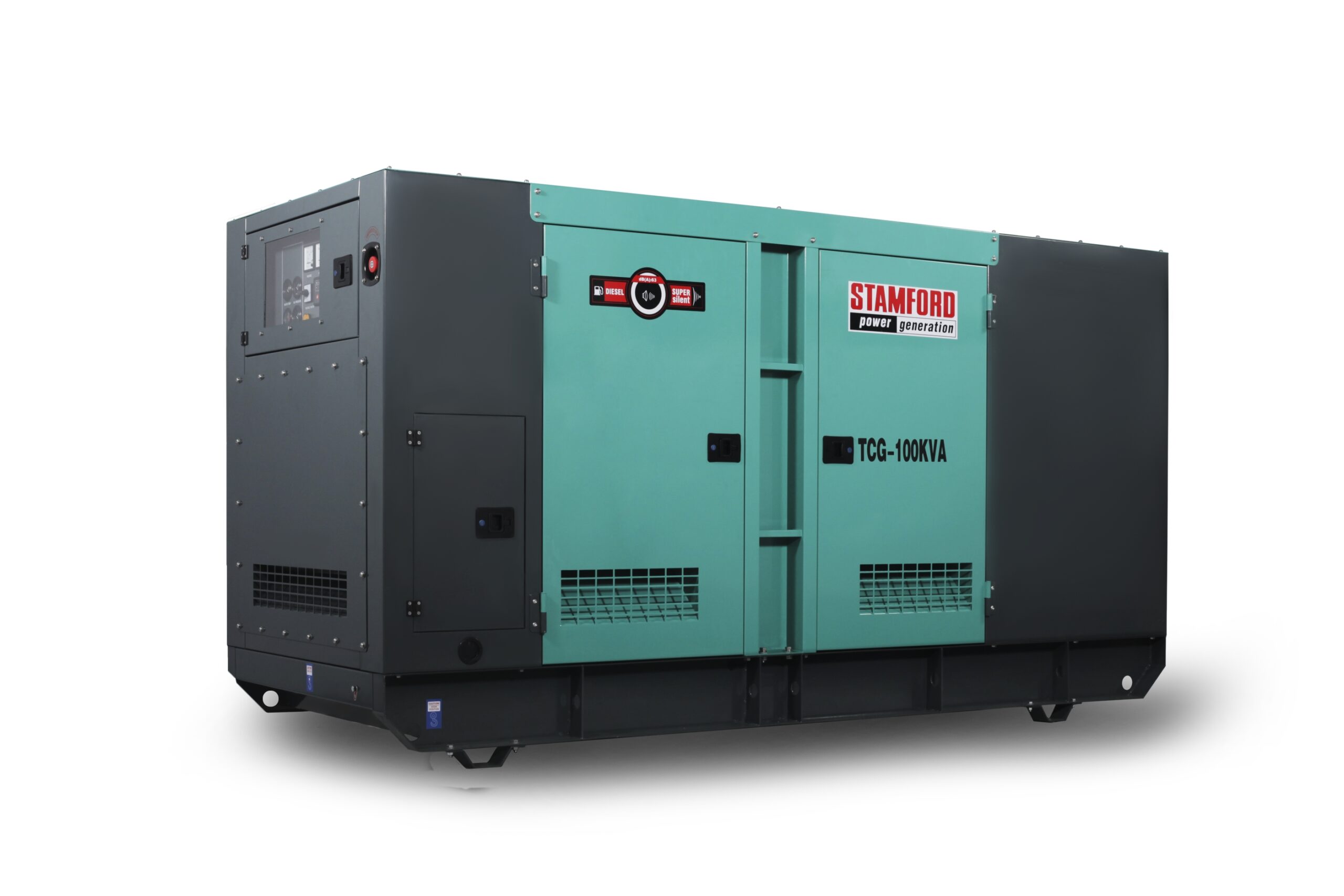

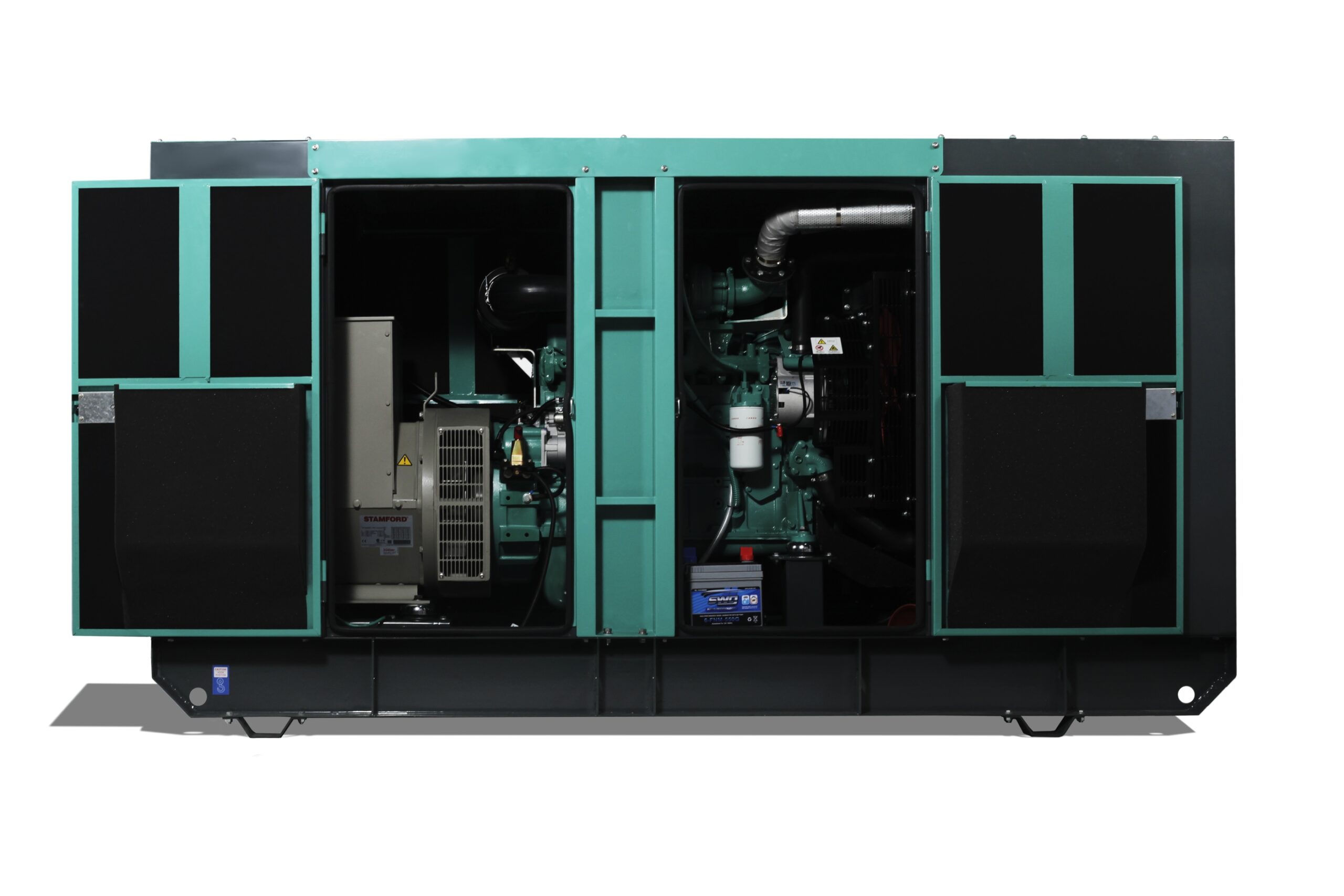

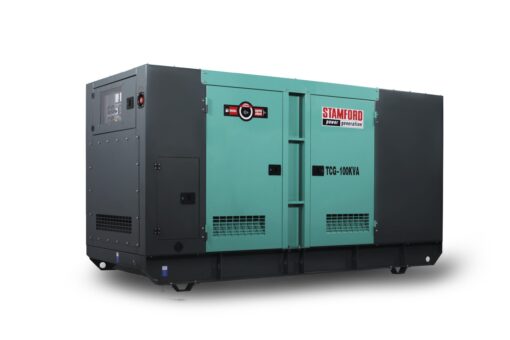

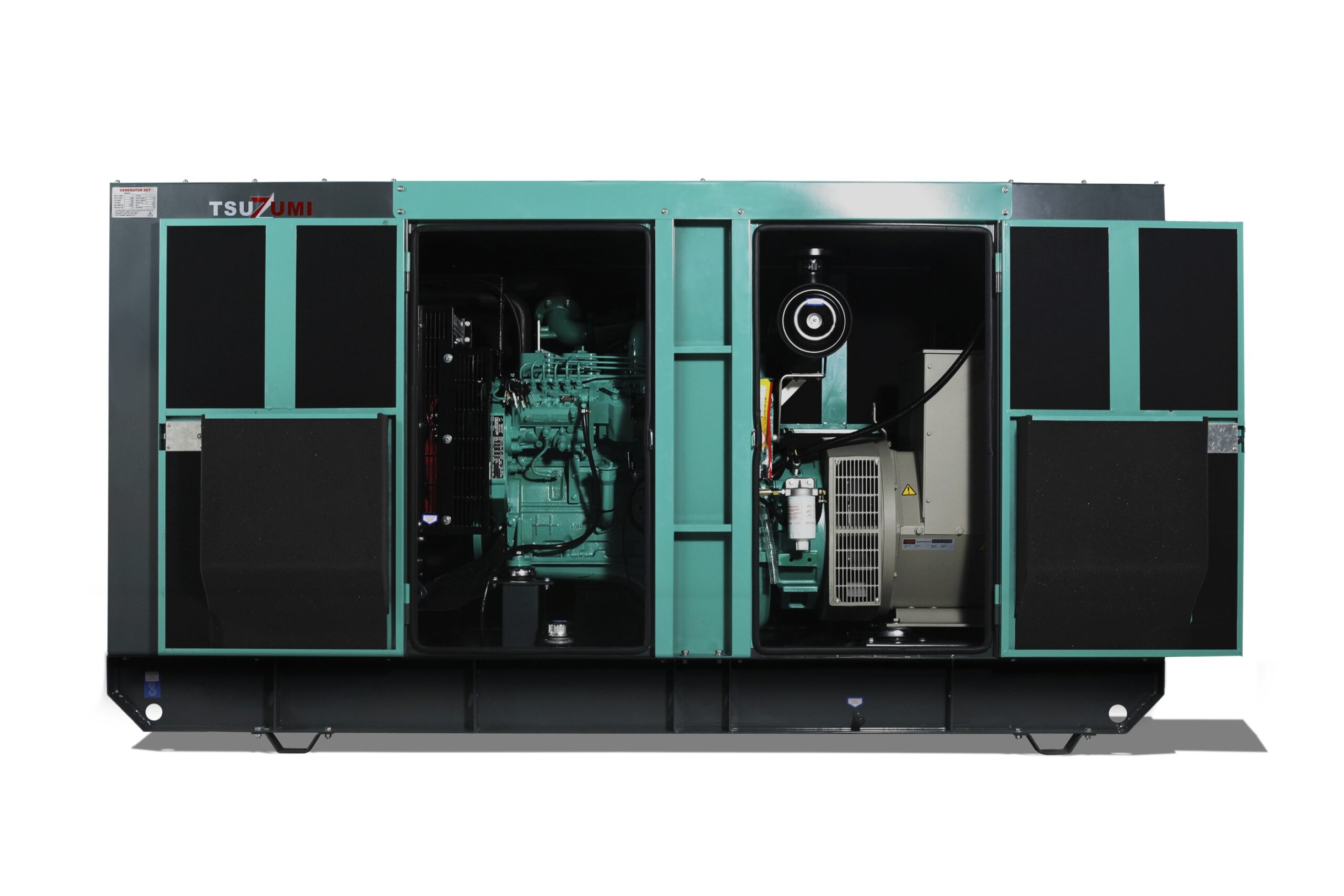

TCG 100 Cummins Engine Data Sheet
| Genset sets type | : TCG100 |
| Prime output(KVA) | : 100 |
| Prime output(KW) | : 80 |
| Standby output(KVA) | : 110 |
| Standby output(KW) | : 88 |

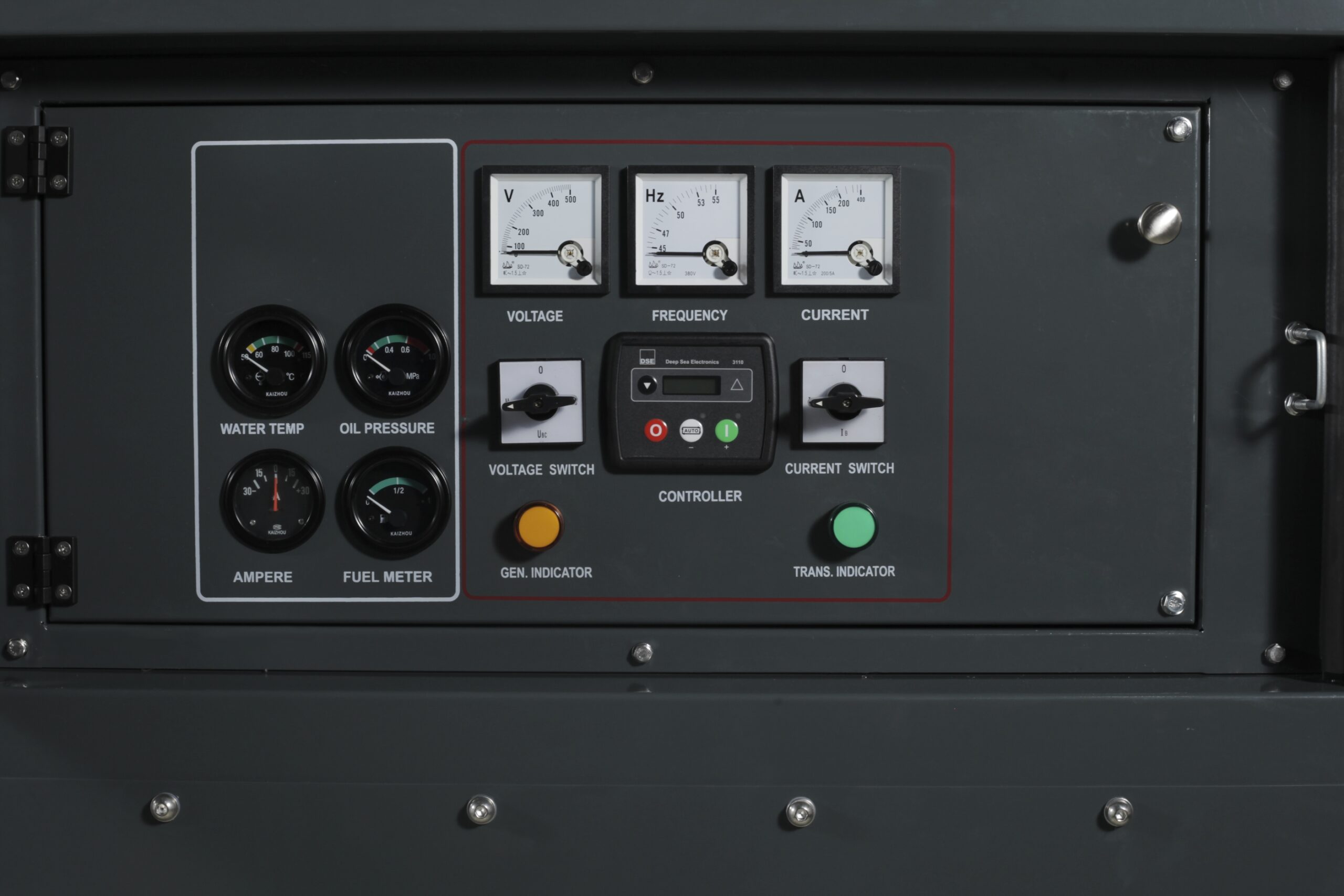

| Conntroller | : DeepSea DSE3110 |

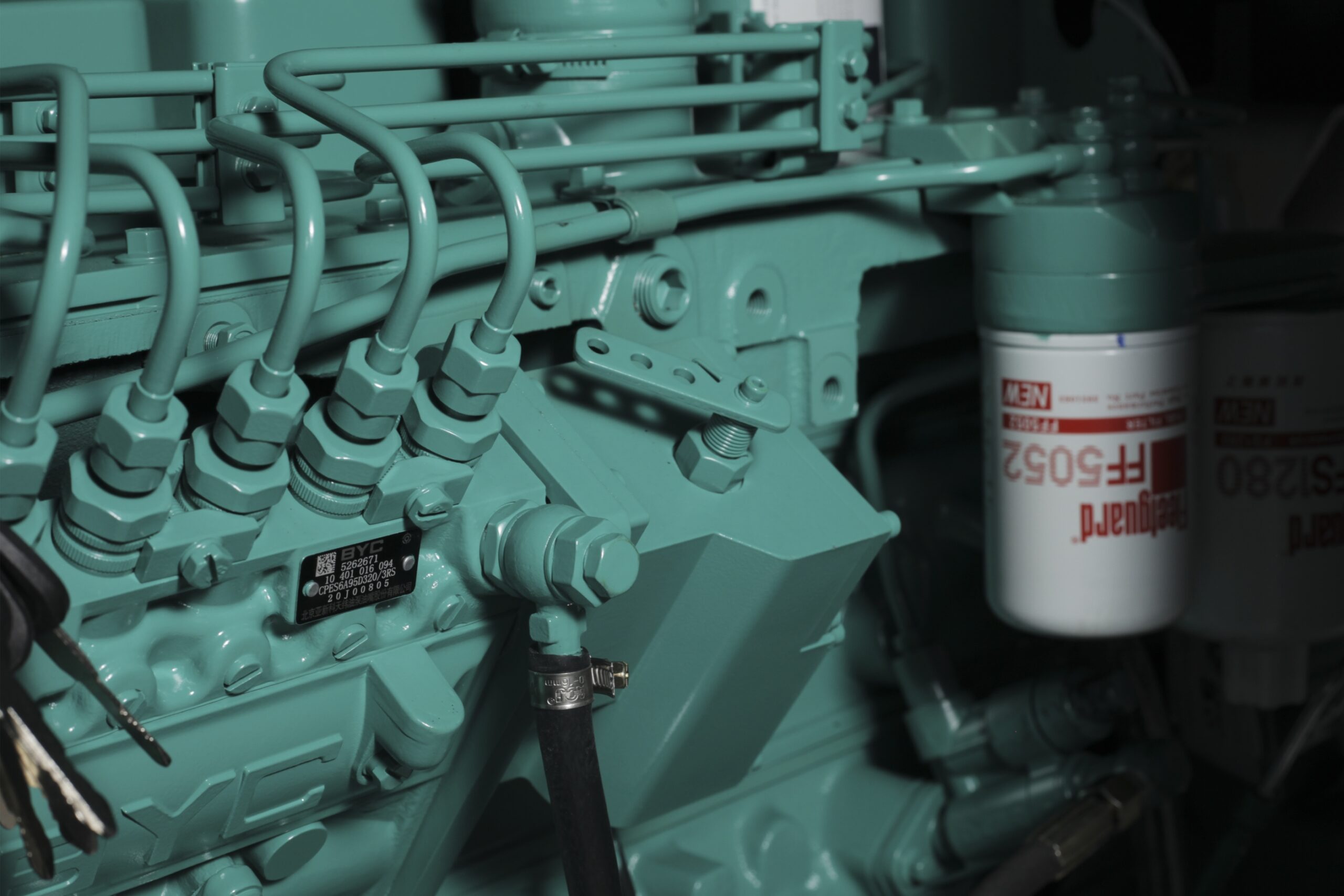

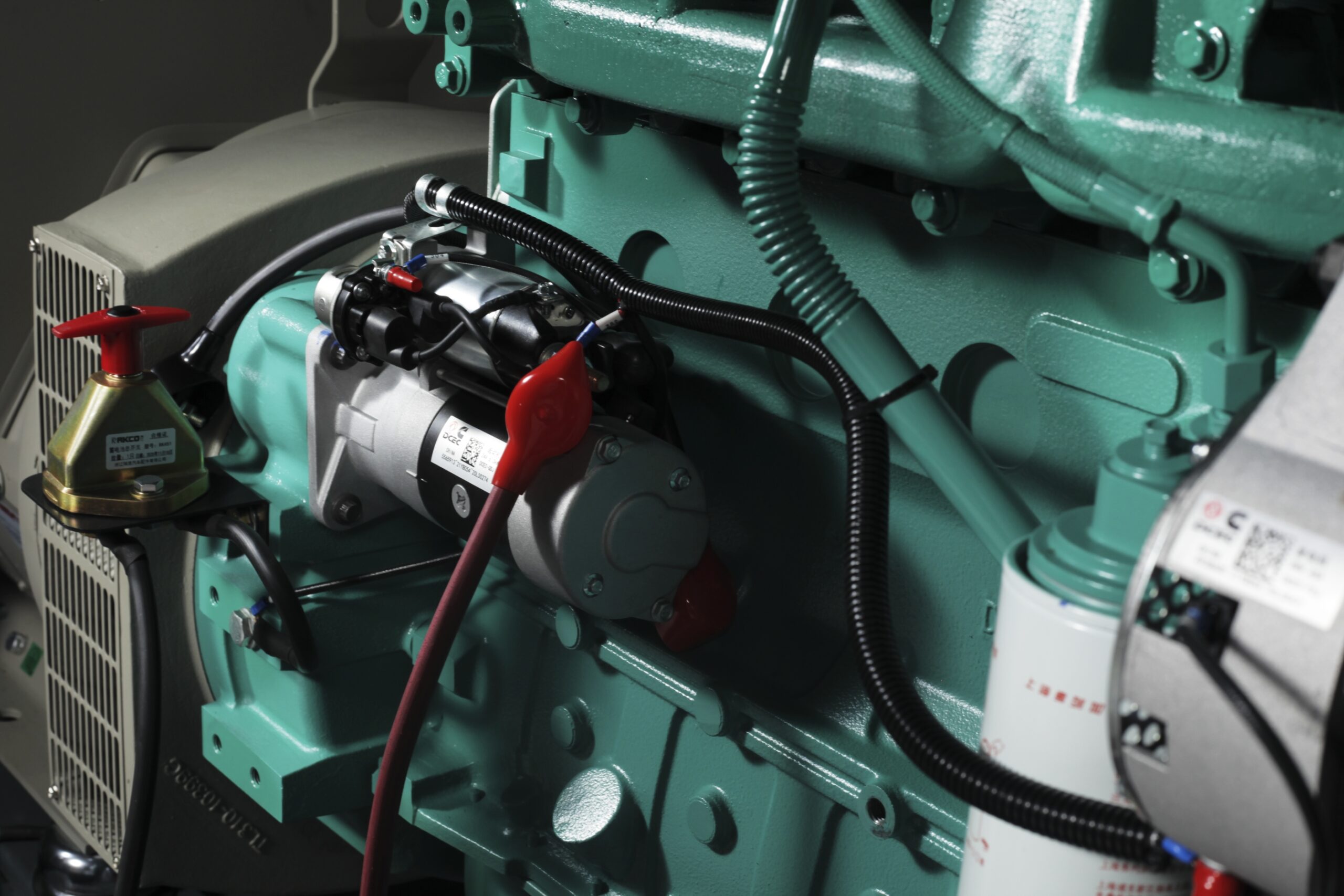

| Engine Brand | : Cummins |
| Battery Type | : Maintainance Free |
| Battery Charger | : With |
| Engine model | : 6BT5.9-G2/86KW |
| Number of cylinders | : 6 |
| Cylinder arrangement | : 6 in line |
| Bore / stroke(mm) | : 102*120 |
| Displacement (L) | : 5.9 |
| Rated Output(kW) | : 86 |
| Standby Output(kW) | : 92 |
| Compression ratio | : 17.3:1 |
| Fuel consumption at 100% rodaing(g/Kw.h) | : 214 |
| Engine Cooling Fluid Volume(L) | : 7.9 |
| Air In Take | : Turbo, Water/Air DC |
| Governing method | : Electronic |

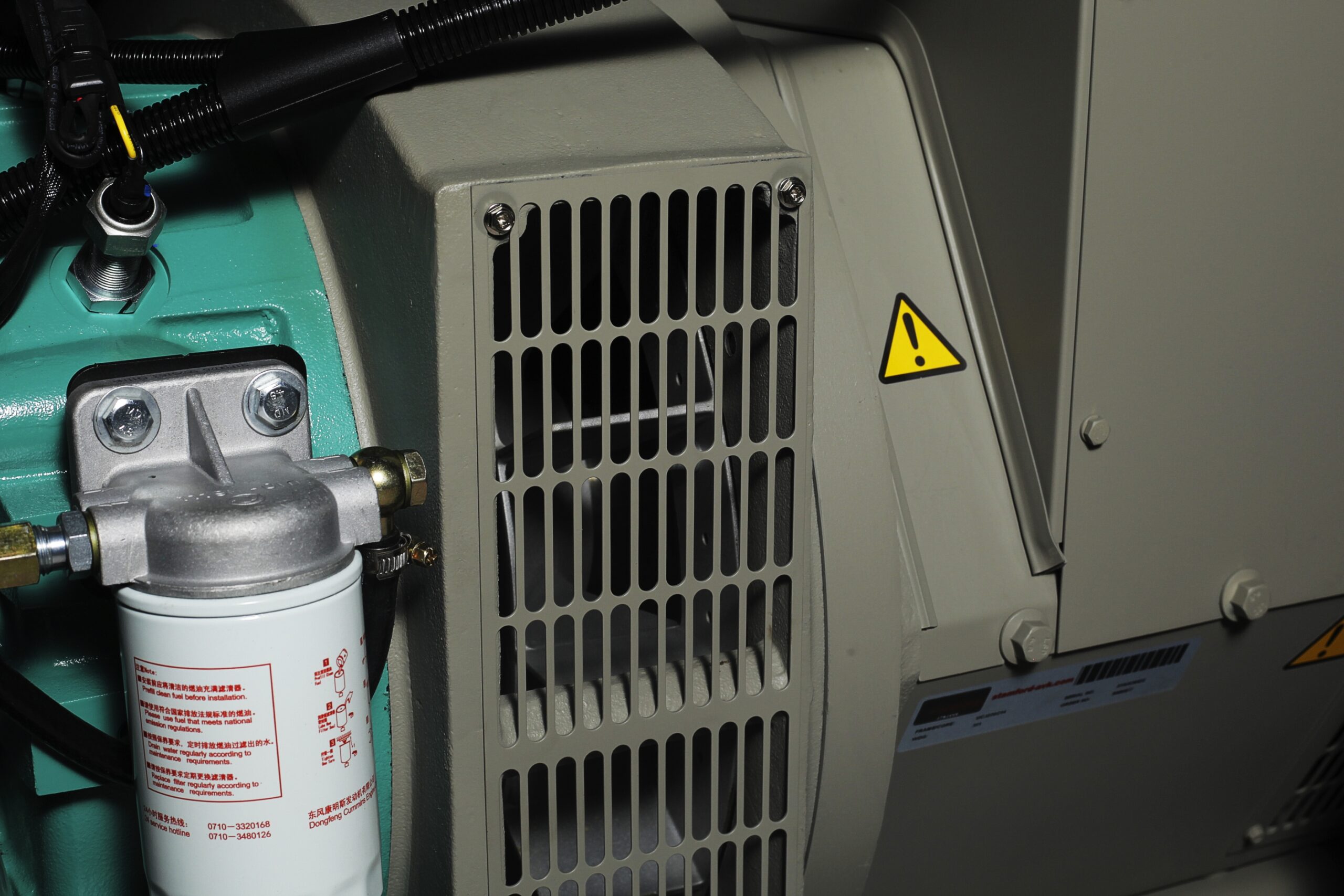

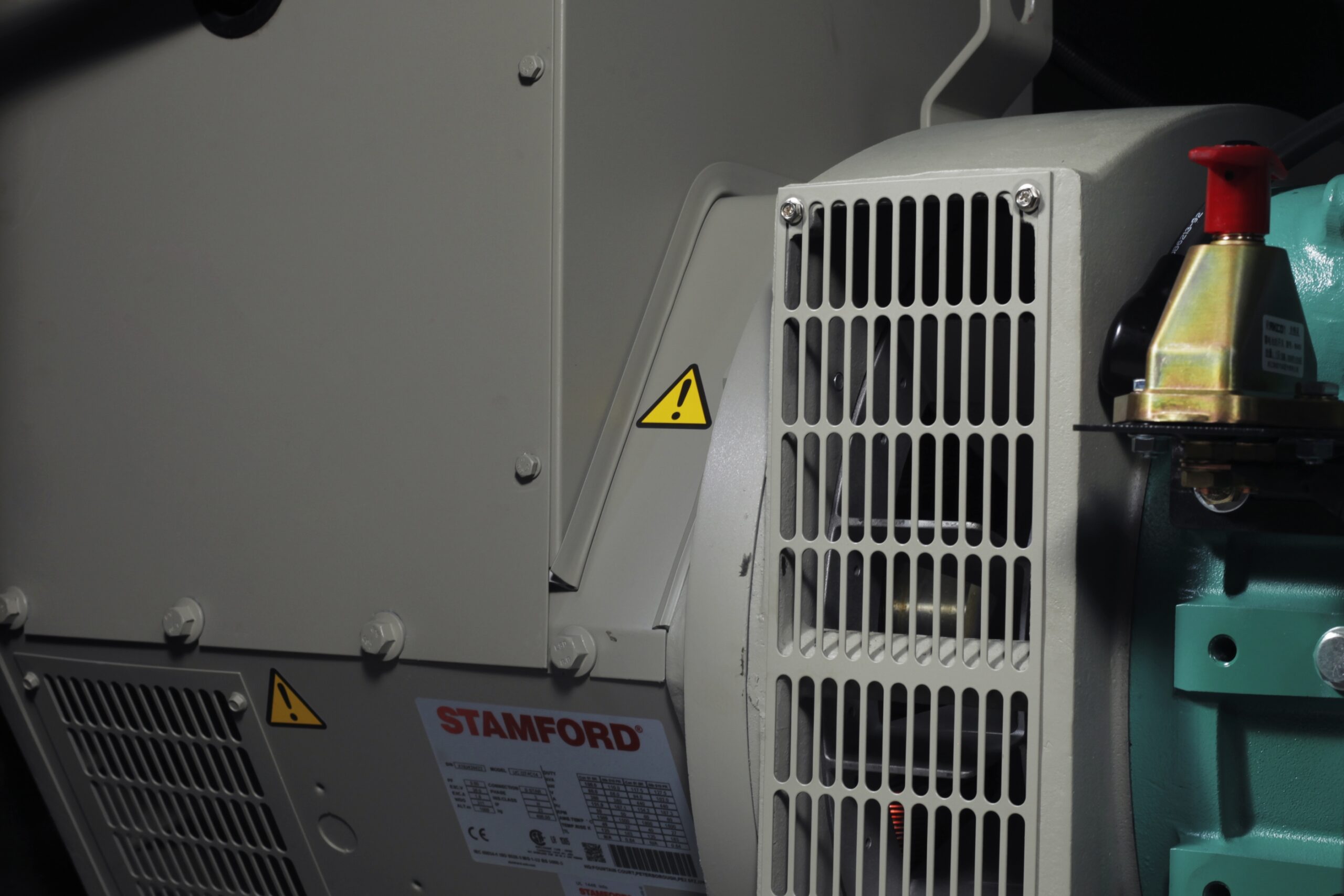

| Generator model | : UCI 274C/80KW |
| Manufacturer | : Stamford |
| Standby output(KVA) | : 100 |
| Voltage /Frequency/Factor | : 380V, 3Phase,50HZ, cosφ0.8 |
| Stead Voltage Regulation(%) | : ±1 |
| Insulating grade | : H |
| Protection grade | : IP23 |

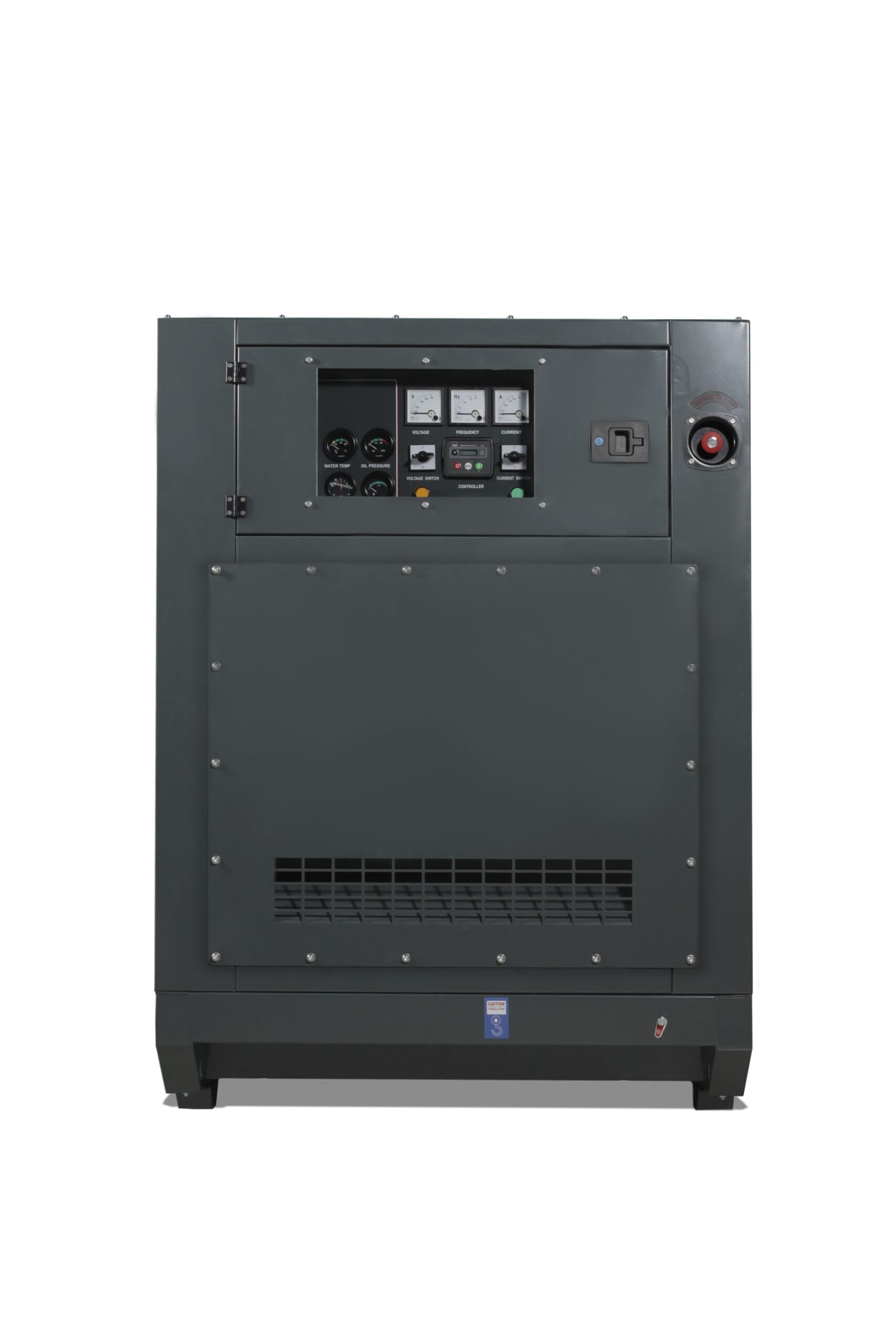

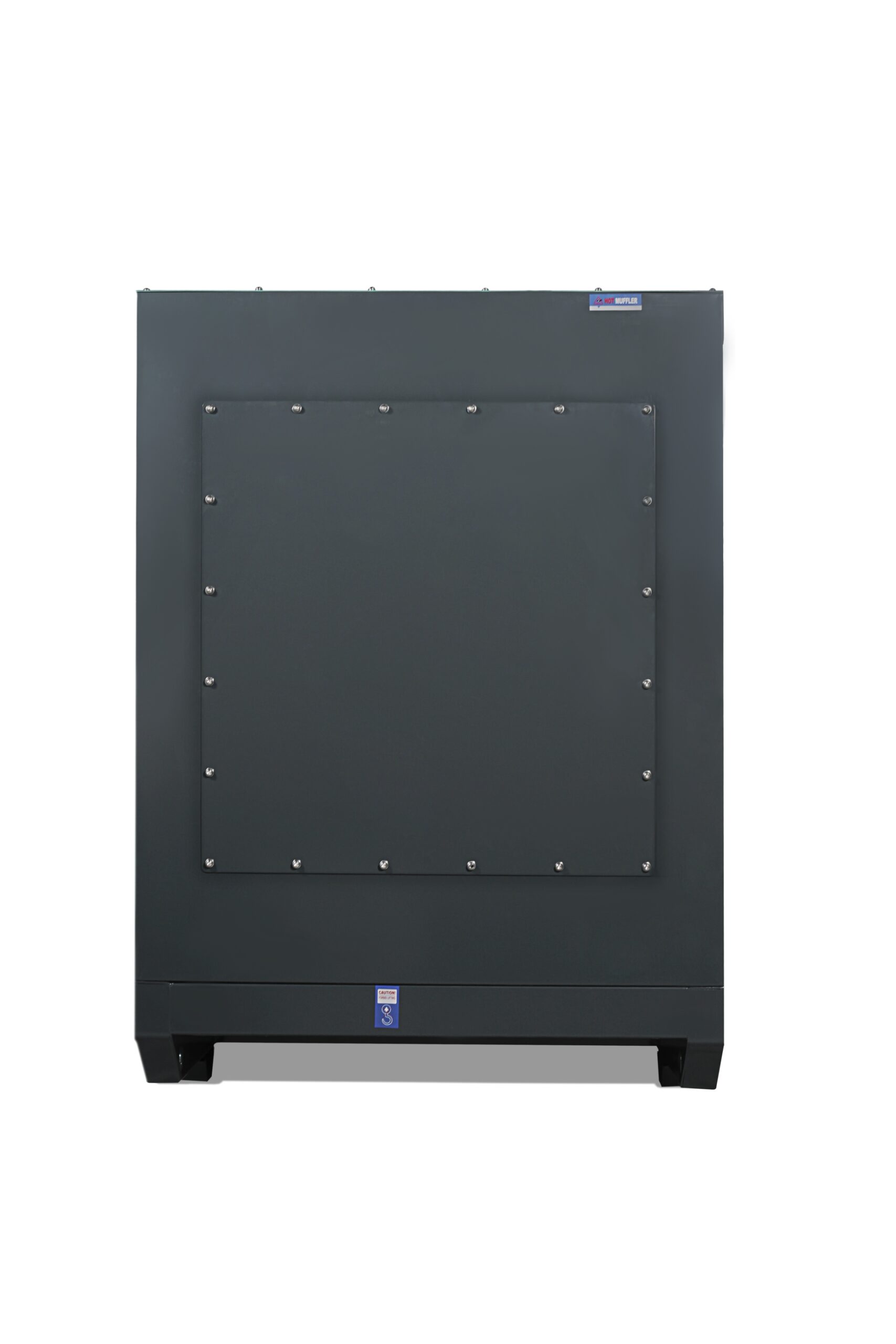

| Silent type Size (mm) | : 2800*1120*1550 |
| Silent type Weight (KGS) | : 1600 |
